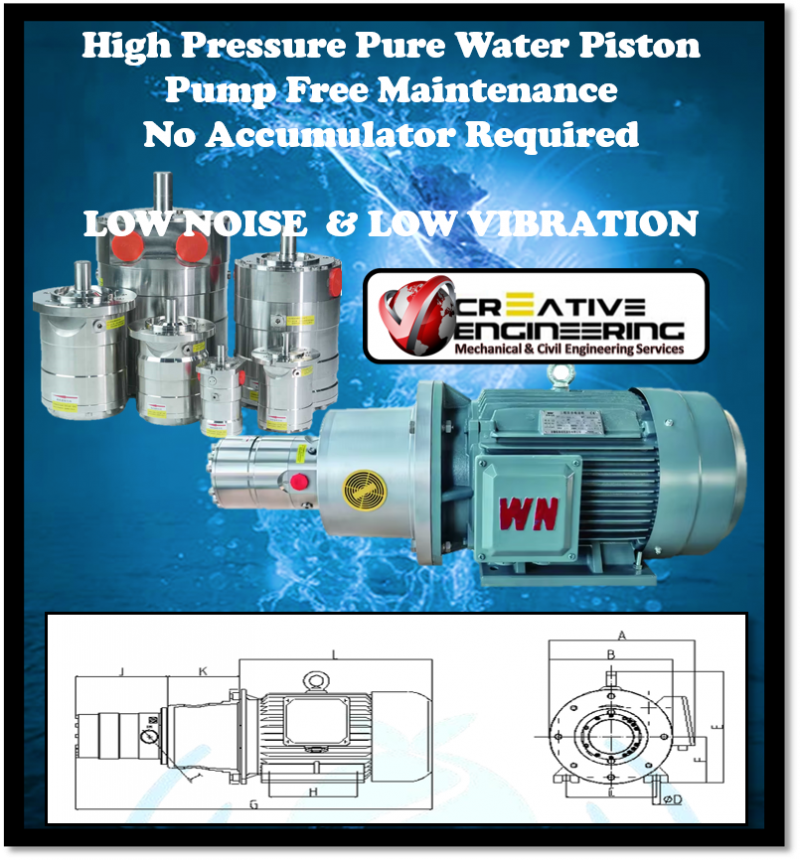

AXIAL PISTON PUMP DUPLEX 15.000 LITER PERHOUR



High Pressure Pump, Axial series high pressure piston pumps are widely used in a variety
of high pressure reverse osmosis desalination systems.:

* Used for desalination of sea water,sub-sea water and inland brackish water in islands and coastal areas
* Used for desalination of industrial wastewater and concentration of zero discharge salt
* Used for osmotic treatment in urban landfills and environment protection power plants
* Used for the treatment of flue gas desalination wastewater in coal-fired power plants and environmental protection power plants
* Used for the treatment of wastewater in coal mining and coal cooking processing
* Used for the concentration of food, medicine and chemical

Raw materials all parts of the pump are made of corrosion resistant materials
such as duplex (SAF 2205/EN1.4462/UNS31803) and super duplex(SAF 2507/EN1.4410/UNS 32507) stainless steel,
as well as carbon fiber reinforced polyether ether ketone(PEEK).

The self lubricating axial piston pump features its smaller size, but macro energy efficiency.
Highest outlet pressure is up to 80 bars (8Mpa),

All components are made of corrosion resistance materials: Duplex & Super Duplex.
The DHP series high pressure pump are widely used in high TDS seawater RO desalination and waste water treatment, etc.

Flow Rate From : 250 Litres Perminute
Inlet Pressure      : 2- 5 Bars
Outlet Pressure   : 20 - 60 Bars
Electro Motor       : 37 KW x 380V
Delivery approx.   : 4-6 Weeks
